EVAPORATORS FOR COLD MACHINE SERIES 80

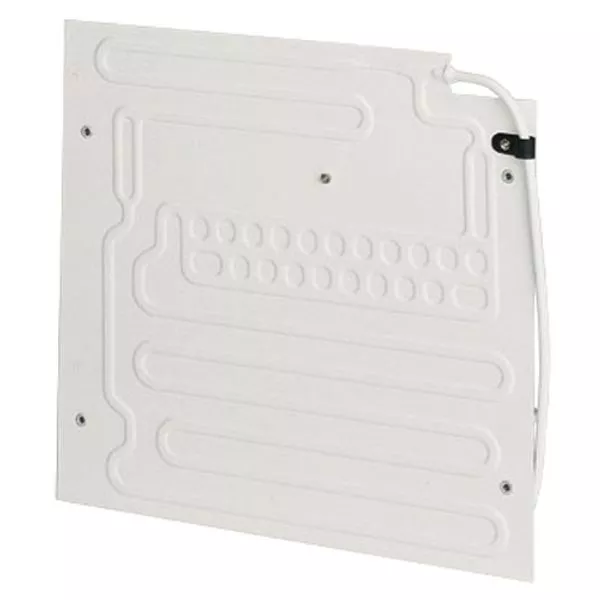

Standard Plate Evaporator
Self-sealing valve couplings.
Flexible connection pipe approximately 2m
Continuously variable thermostat (for external installation) with Blue turning dial and LED indicator in a white plastic housing.
Electric supply cord approx. 3m
Technical Specifications
Compressor Options for this evaporator: 6-60160, 6-60161, 6-60162
| Model | VD-05 |
| Cooling Capacitieswith 35mm PU insulationwith 50mm PU insulation | 130 litres max170 litres max |
| Power Input | 45 Watts |
| Current Consumption (Ah/h)with 35mm PU insulationwith 50mm PU insulation | 1.881.50 |
| Dimensions (W X H X D)mm | 375x350x25 |
| Weight | Approx 1.5Kg |
