EVAPORATORS FOR COLD MACHINE SERIES 50

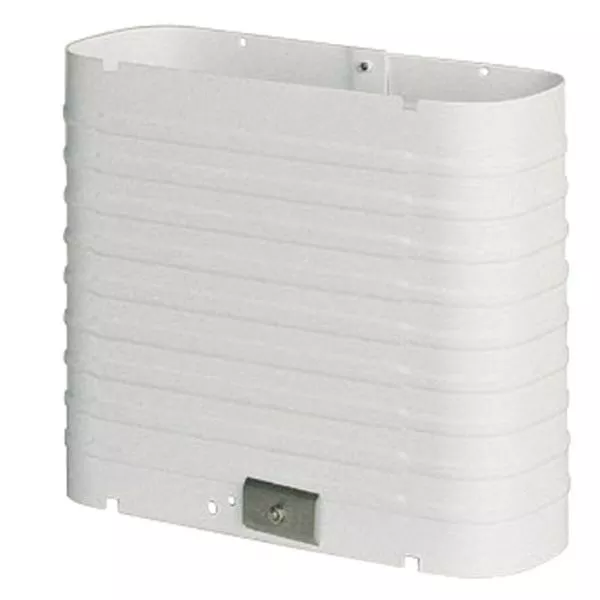

Standard Plate evaporator for horizontal and vertical installation.
Self-sealing valve couplings
Flexible connection pipe approx. 2m
Continuously variable thermostat (for external installation with blue turning dial & LED indicator in white plastic housing)
Electric supply cord approx. 3m
Compressor choice: (Not Included) Either 6-60150 or 6-60151
Optional mains Adaptor 230V Ac 6-60199
| Model | VD-07 |
| Cooling Capacities | 100L Max with 35mm Pu Insulation130L Max with 50mm Pu Insulation |
| Power Input | 35 watts |
| Current Consumption Ah/h | 1.46 with 35mm Pu insulation1.17 with 50mm Pu insulation |
| Dimensions (W x H X D) | 255 x 210 x 90mm |
| Weight | 1.5Kg |
