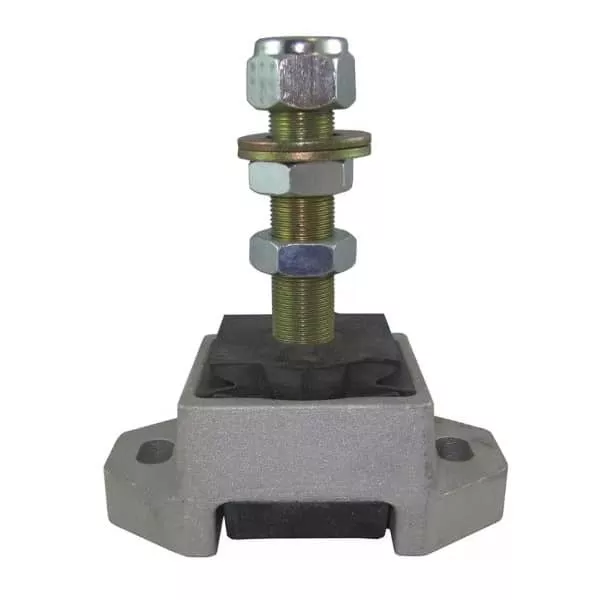

The DF-9106 Engine Isolator Mount is specifically designed for In-Line Six Cylinder Diesel configurations in the 300 – 485 Horsepower range. This mount is a proven design developed to absorb the angular prop thrust loads exerted at peak torque minimizing forward angular movement as well as side to side movement in rough seas. Features a heavy duty aluminum casting – with durable oil and fuel resistant elastomer element. Low profile mount – requires only 3 1/2” minimum clearance from base to top of leveling nut. Mount comes complete – furnished with three nuts: leveling, locking and full secondary lock, plus two washers. Easy installation with full 1” threaded stud for vertical height adjustment, and aluminum base cast with 1/2” slotted mounting holes for 1/2” bolts or lag screws on 5” centers. Studs, nuts and washers zinc plated to resist corrosion.
DF-9106 Engine Weighing 1,800 to 2,400
Additional information
| Weight | 6.425 lbs |
|---|---|
| Dimensions | 6.5 × 3.75 × 8 in |
