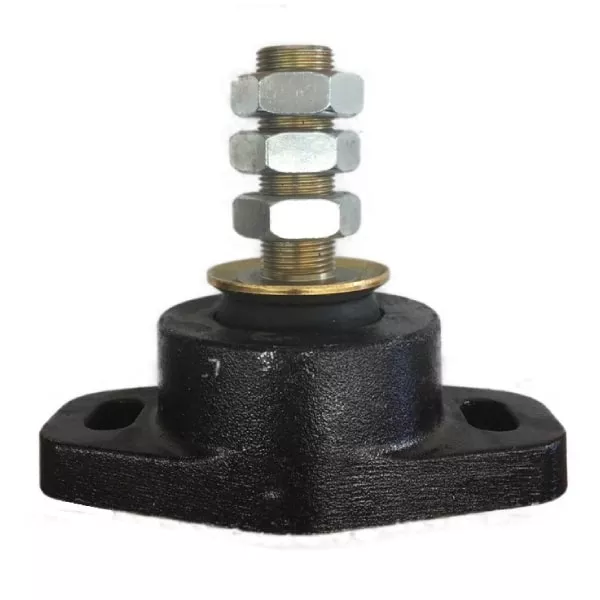

The (“Dual Flex”) DF-4400 Series of heavy duty mountings is designed principally for diesel engines in the 1,400 – 2,800 lb. range. Base casting features heavy duty aluminum alloy construction, with lip incorporated in the top of the casting to resist the upward pull of the engine – coated black to resist corrosion. Durable oil and fuel resistant elastomer element. Low profile mount – requires only 3 3/8” minimum clearance from casting base to top of leveling nut. Fail safe design – bottom pad prevents excessive impact. Easy installation with full 1” threaded stud for vertical height and slotted casting for horizontal adjustment. Mounts come complete – furnished with three nuts: leveling, locking and secondary lock. Aluminum base cast with 1/2” slotted mounting holes for 1/2” bolts or lag screws on 5” centers. All steel parts are Zinc plated for corrosion resistance. Available in four size ratings (shown below) dependant on engine/powertrain package weight.
DF-4405-4 Engine Weighing 1,400 to 1,800 Do not StockDF-4406-4 Engine Weighing 1,800 to 2,200 In StockDF-4407-4 Engine Weighing 2,200 to 2,500 Do not StockDF-4408-4 Engine Weighing 2,500 to 2,800 In Stock
Additional information
| Weight | 4.225 lbs |
|---|---|
| Dimensions | 6.75 × 3.75 × 5.75 in |
