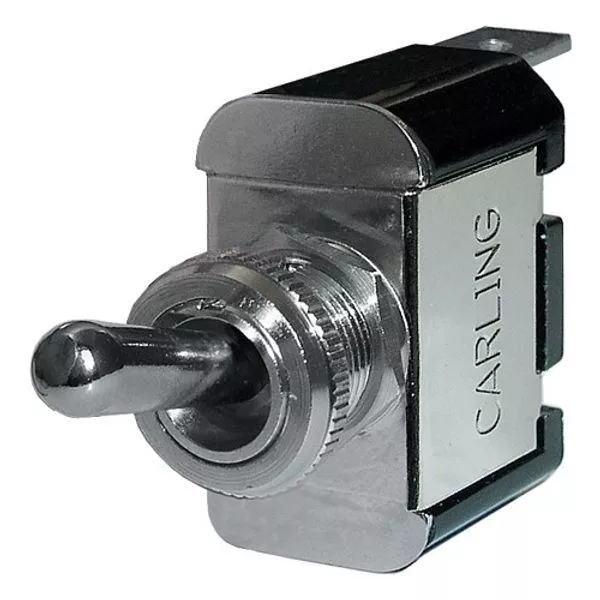

o Specially manufactured for use in WeatherDeck™ Waterproof Panels
o Rated IP67 – temporary immersion for 30 minutes, when mounted with a WeatherDeck™ Toggle Switch Boot (8-24138)
o Nickel-plated brass & phenolic non-corrosive construction
Specifications Single Pole
Rating: 250 Volts AC: 10 Amps
Rating: 125 Volts AC: 15 Amps
Rating: 12 Volts DC: 15 Amps
Terminal Size: 0.25″ (6.35mm)
Terminal Type: Quick Connect Tab
Specifications Double Pole
Rating: 30 Volts DC: 5 Amps
Terminal Size: 0.25″ (6.35mm)
Terminal Type: Quick Connect Tab
