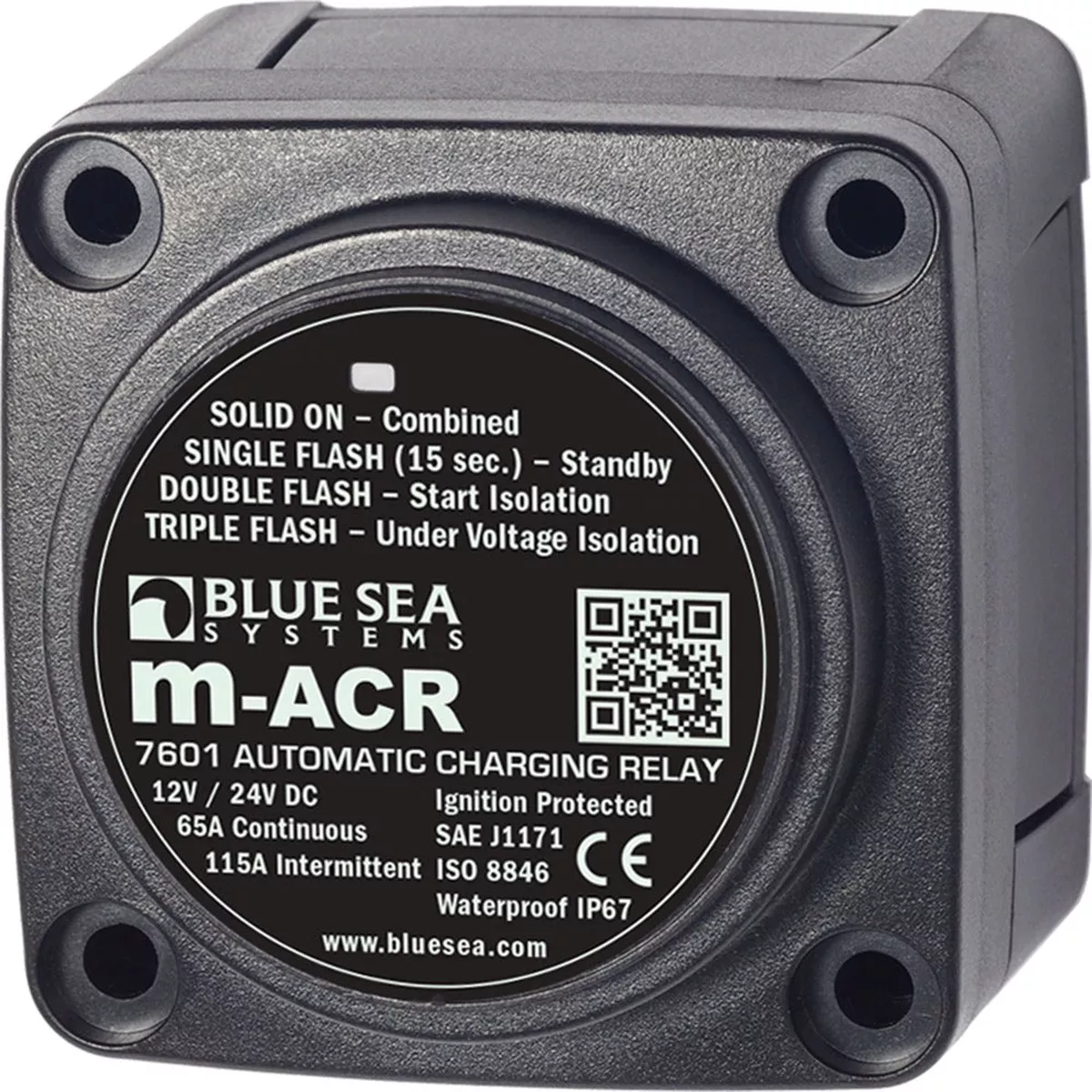

Ensure your marine electrical system operates efficiently and reliably with the 7601 DC Mini ACR Automatic Charging Relay. Perfectly suited for boating applications, this relay manages the charging process between multiple battery banks, ensuring optimal performance of your vessel’s electrical components.
Key Features
- 65 Amp continuous rating handles charging currents from alternators up to 65 Amps, compatible with most outboard and many inboard engines.
- Compact and durable case design allows for both surface and panel mounting, saving valuable space on your vessel.
- Automatically senses charging activity across two separate battery banks to maintain balanced power distribution.
- Snap-on cover provides insulation for terminal connections, enhancing safety and reliability.
- LED indicator displays the ACR status, allowing for easy monitoring of the system’s operation.
- Equipped with a 1/4″ x .032″ male quick connect terminal for secure ground connections.
- 5/8″ (16 mm) stud length accommodates a variety of cable terminals for versatile installation options.
- 12V DC voltage input ensures compatibility with standard marine electrical systems.
- Under Voltage Lockout protects the relay by disabling operation below 9.5V DC.
- Maximum cable size supported is 1/0 AWG, suitable for high-current marine applications.
Specifications
| Specification | Details |
|---|---|
| Continuous Amperage | 65A |
| Intermittent Rating (5 min) | 115A |
| Terminal Stud Size | 1/4″-20 |
| Relay Contact Position: Open (30 sec.) | 12.75V DC |
| Maximum Torque | 75 in-lb (8.5 Nm) |
| Relay Contact Position – Open High | 16.0V DC |
| Amperage Operating Current (Combine) | 175mA |
| Relay Contact Position: Combine (30 sec.) | 13.0V DC |
| Under Voltage Lockout | 9.5V DC |
| Amperage Operating Current (Open) | 15mA |
| Relay Contact Position: Combine (2 min.) | 13.6V DC |
| Maximum Cable Size | 1/0 AWG |
| Relay Contact Position: Open (10 sec.) | 12.35V DC |
| Box Dimensions | 3″H x 4″W x 7″L |
| Weight | 0.6 lbs |
| UPC | 632085076016 |
