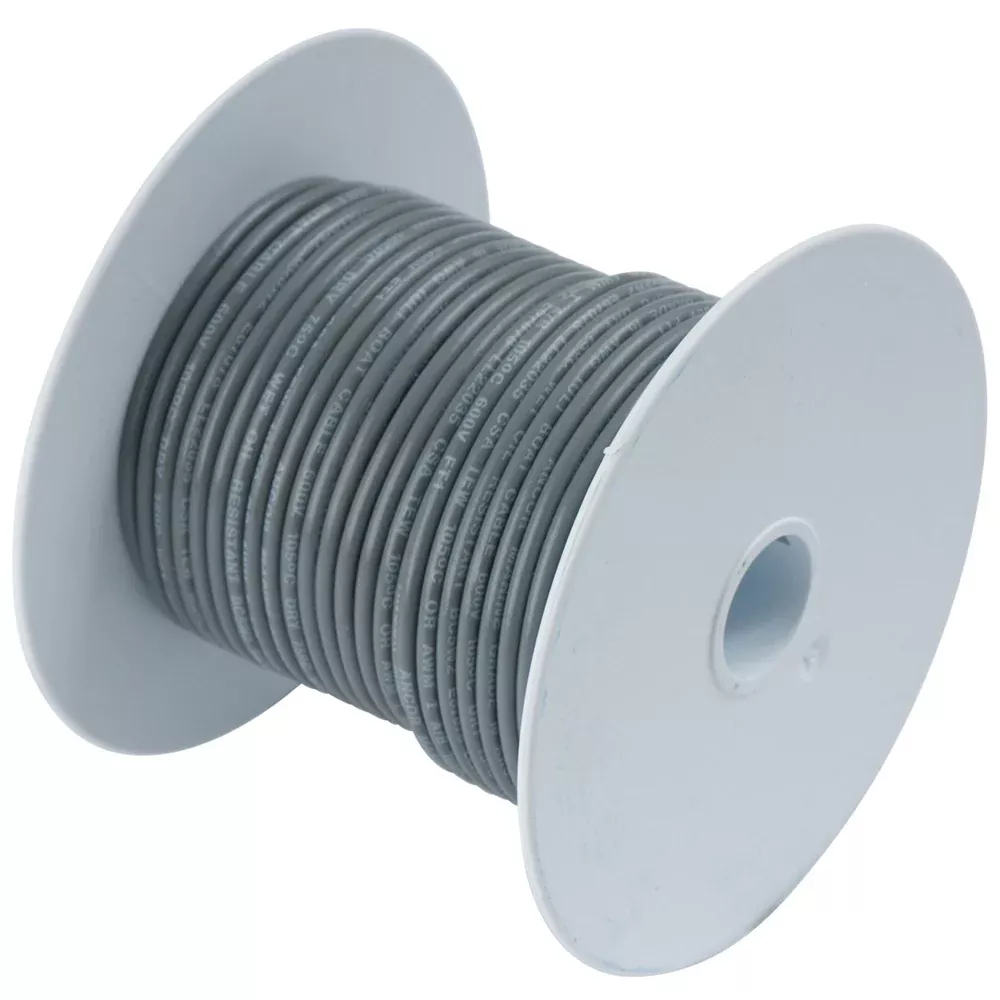

Grey 16 AWG Primary Wire – 100 is the ideal solution for marine and boating applications, providing exceptional durability and flexibility to withstand the demanding marine environment.
Features
- Marine-Grade Construction: ANCOR Marine Grade wire is crafted from tinned copper stranding, offering maximum protection against corrosion and electrolysis. The ultra-flexible Type 3 stranding resists fatigue from vibration and constant flexing, ensuring long-lasting performance on the water.
- Premium Vinyl Insulation: ANCOR’s proprietary premium vinyl insulation maintains flexibility even in extreme cold. It resists saltwater, battery acid, oil, gasoline, and ultraviolet (UV) radiation. The exclusive insulation is rated for 600 volts, 105C dry, and 75C wet, providing excellent resistance to heat and abrasion.
- Exceeds Industry Standards: This primary wire surpasses all UL 1426, US Coast Guard Charter Boat (CFR Title 46), and ABYC standards, ensuring reliable and safe performance for all your marine electrical needs.
Specifications
| Attribute | Details |
|---|---|
| Color | Grey |
| Length | 100 feet |
| Gauge | 16 AWG |
| Box Dimensions | 4″ H x 4″ W x 4″ L |
| Weight | 1.5 lbs |
| UPC | 091887103502 |
Compliance
This product meets and exceeds all UL 1426, US Coast Guard Charter Boat (CFR Title 46), and ABYC standards, ensuring it is suitable for a wide range of marine electrical installations.
Safety Information
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Additional Resources
- Quick Guide (PDF)
- Brochure (PDF)
