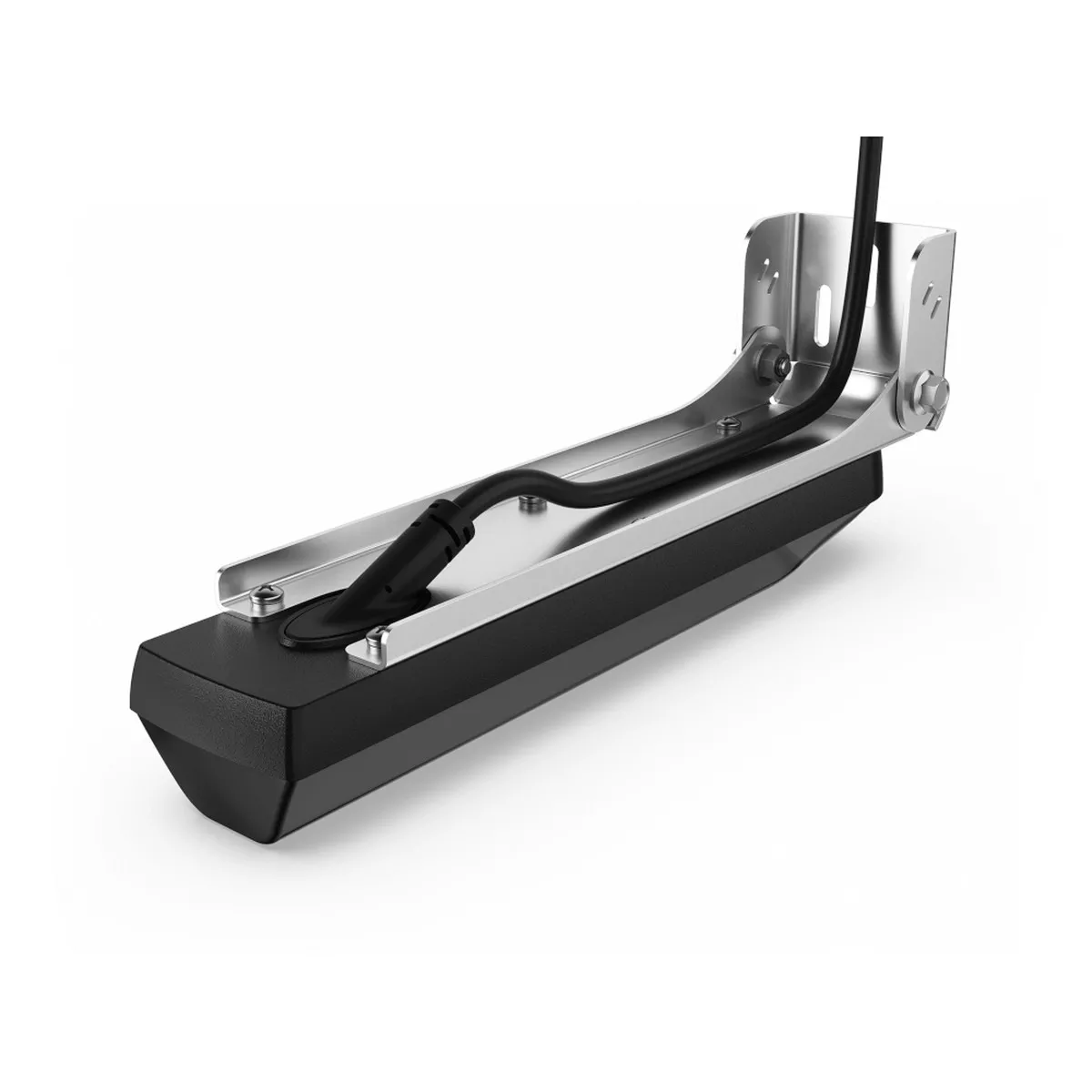

ActiveImaging HD 3-in-1 Transducer

Lowrance ActiveImaging HD 3-in-1 Transducer |000-16062-001 See the DifferenceOur clearest sonar ever, Active Imaging HD delivers the highest-definition views of Lowrance CHIRP, SideScan and DownScan Imaging. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more. FishRevealGet the best of Lowrance CHIRP sonar and DownScan Imaging on one screen with the FishReveal DownScan view, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images. Designed for ClarityThe Active Imaging HD transducer not only delivers three key sonar technologiesLowrance CHIRP, SideScan and DownScan Imagingin one convenient package, but also features a new transducer design that boosts signal clarity.High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure Lowrance CHIRP with superb clarity and target separation FishReveal DownScan view makes fish identification easy Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies Smart transducer design boosts signal clarity Compatible with Lowrance HDS PRO or with a S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSSevo3S, NSS evo3 and GO series displays Specifications:Mounting Type Transducer: Bracket MountWeight Transducer: 2.67 lbs (1.21 kg)Frequencies: CHIRP: High CHIRP Medium CHIRP Broadband: 83 kHz 200 kHzActive Imaging HD: SideScan: Low CHIRP: 455 kHz (445 kHz – 495 kHz)High CHIRP: 1075 kHz (1065 kHz – 1115 kHz)DownScan: Low CHIRP: 700 kHz (690 kHz – 740 kHz)High CHIRP: 1200 kHz (1190 kHz – 1240 kHz)Max Depth 2D Sonar: Broadband/CHIRP: 200 kHz/High CHIRP – 500′ (152.4m) 83 kHz/Medium CHIRP – 1000′ (304.8m)SideScan: High Frequency: 150′ (45.72m) Low Frequency: 300′ (91.44m)DownScan: High Frequency: 150′ (45.72m) Low Frequency: 300′ (91.44m) MANUALS AND GUIDES
